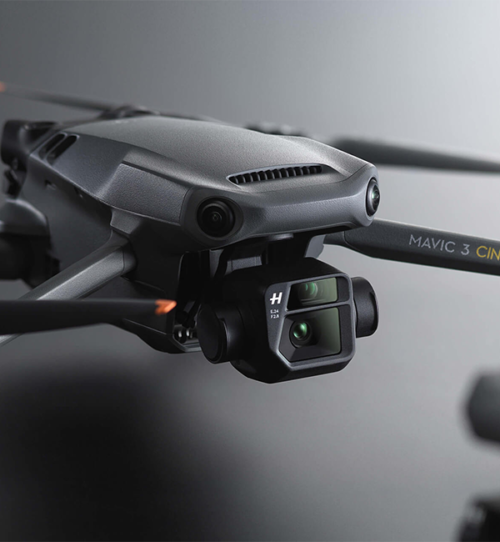

Dron DJI Mavic 3 Cine Premium Combo 4/3 CMOS

Opis

Težina polijetanja
Mavic 3 Cine: 899 g
Dimenzije (presavijene/rasklopljene)
Presavijeno (bez propelera) 221×96,3×90,3 mm(Dužina׊irina×Visina)Nepresavijena (bez propelera) 347,5×283×107,7 mm
(Dužina׊irina×Visina)
Dijagonalna dužina
380,1 mm
Max Ascent brzina
1 m/s (C mod)6 m/s (N mod)8 m/s (S mod)
Max brzina spuštanja
1 m/s (C mod)6 m/s (N mode)6 m/s (S mode)
Max brzina leta (na nivou mora, bez vjetra)
5 m/s (C mod)15 m/s (N mod)19 m/s (S mod)
Max servisni plafon iznad nivoa mora
6000 m
Max Flight Time (Originalni naziv)
46 minuta *
Max Hovering Time (Originalni naziv)
40 minuta *
Vrijeme leta je mjereno u kontrolisanom testnom okruženju. Specifični uslovi ispitivanja su sledeći: Nema vjetra, na nivou mora, konstantne brzine leta od 32,4 km/h, isključenog APAS-a, isključenog AirSense-a, parametara kamere podešenih na 1080p/24fps, isključenog video režima i letenja od 100% baterije do 0% baterije. Rezultati se mogu razlikovati u zavisnosti od okruženja, scenarija upotrebe i verzije firmvera.
Max udaljenost leta
30 km
Max otpor brzine vjetra
12 m/s
Max Tilt ugao
25° (C mod)30° (N mode)35° (S mode)
Max ugaona brzina
200°/s
Radna temperatura
-10° do 40° C (14° do 104° F)
GNSS
GPS + Galileo + BeiDou
Raspon tačnosti lebdenja
Vertikalno: ±0,1 m (sa pozicioniranjem vida); ±0,5 m
(sa GNSS pozicioniranjem)
Horizontalno: ±0,3 m (sa pozicioniranjem vida); ±0,5 m
(sa sistemom za pozicioniranje visoke preciznosti)
Interno skladište
Mavic 3: 8 GB (raspoloživi prostor je cca 7,9 GB)Mavic 3 Cine: 1TB (raspoloživi prostor je cca 934,8 GB)
Kamera Hasselblad
Senzor
4/3 CMOS, Efektivni pikseli: 20 MP
Leća
FOV: 84°
Format Ekvivalent: 24 mm
Otvor blende: f/2,8 do f/11
Fokus: 1 m do ∞ (sa autofokusom)
ISO Range
Video: 100-6400
Still Image: 100-6400
Shutter Speed
Electronic Shutter: 8-1/8000 s
Max Image Size
Main Unit: 5280×3956
Still Photography Modes
Single shot: 20MP Photos
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV
Burst shooting: 20 MP, 3/5/7
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Video Resolution
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps

H.264/H.265
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080@24/25/30/48/50/60/120*/200*fps

* Framerates above are recording framerates. Videos will be played as slow-motion videos.
Max Video Bitrate
H.264/H.265 Bitrate: 200 Mbps
Apple ProRes 422 HQ Bitrate: 3,772 Mbps
Apple ProRes 422 Bitrate: 2,514 Mbps
Apple ProRes 422 LT Bitrate: 1,750 Mbps
Supported File Formats
exFAT
Photo Format
JPEG/DNG (RAW)
Video Formats
Mavic 3:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Mavic 3 Cine:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
MOV (Apple ProRes 422 HQ/422/422 LT)
Tele Camera
Sensor
1/2-inch CMOS
Shutter Speed
Electronic Shutter: 2-1/8000 s
Lens
FOV: 15°
Format Equivalent: 162mm
Aperture: f/4.4
Focus: 3 m to ∞
ISO Range
Video: 100-6400
Still Image: 100-6400
Max Image Size
4000×3000
Photo Format
JPEG/DNG (RAW)
Video Formats
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Still Photography Modes
Single shot: 12MP Photos
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 bracketed frames at 0.7 EV
Burst shooting: 12 MP, 3/5/7
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s
Video Resolution
H.264/H.265
4K: 3840×2160@25/30/50fps
FHD: 1920×1080@25/30/50fps
Digital Zoom
4x
Gimbal
Stabilization
3-axis motorized (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 100°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range
Tilt: -90° to 35°
Pan: -5° to 5°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°
Sensing
Sensing System
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
Measurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15m/s
FOV: Horizontal 90°, Vertical 103°
Backward
Measurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤ 12m/s
FOV: Horizontal 90°, Vertical 103°
Lateral
Measurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤ 15m/s
FOV: Horizontal 90°, Vertical 85°
Upward
Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤ 6m/s
FOV: Front and Back 100°, Left and Right 90°
Downward
Measurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤ 6m/s
FOV: Front and Back 130°, Left and Right 160°
Operating Environment
Forward, Backward, Left, Right, and Upward: Surface with a clear pattern and adequate lighting (lux>15)
Downward: Surface with a clear pattern and adequate lighting (lux >15). Diffuse reflective surface with diffuse reflectivity>20% (e.g. wall, tree, person)
Video Transmission
Video Transmission System
O3+
Live View Quality
Remote Controller: 1080p@30fps/1080p@60fps
Operation Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference and aligned with controller)
2.400-2.4835 GHz; 5.725-5.850 GHz
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Signal Transmission Ranges (FCC)
Strong Interference (urban landscape, limited line of sight, many competing signals): Approx. 1.5-3 km
Medium Interference (suburban landscape, open line of sight, some competing signals): Approx. 3-9 km
Low Interference (open landscape abundant line of sight, few competing signals): Approx. 9-15 km
Data is tested under different standards in open areas free of interference. It only refers to the maximum, one-way flight distance without considering Return to Home. Please pay attention to RTH prompts in the DJI Fly app during actual flight.
Max Download Bitrate
O3+:
5.5MB/s (with RC-N1 remote controller)
15MB/s (with DJI RC Pro remote controller)
Wi-Fi 6:
80MB/s*
Measured in laboratory environments with little interference in countries/regions that support both 2.4GHz and 5.8GHz, and the footage is saved in the built-in SSD or internal storage. Download speed may vary depending on actual conditions.
Latency (depending on environmental conditions and mobile device)
130 ms (with RC-N1 remote controller)
120 ms (with DJI RC Pro remote controller)
Antennas
4 antennas, 2T4R
Transmitter Power (EIRP)
2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤33 dBm (FCC), ≤30 dBm(SRRC), ≤14 dBm(CE)
Battery
Capacity
5000 mAh
Voltage
15.4 V
Charging Voltage Limit
17.6 V
Battery Type
LiPo 4S
Energy
77 Wh
Weight
335.5 g
Charging Temperature
5° to 40° C (41° to 104° F)
Battery Charger
Input
100-240 V AC, 47-63 Hz, 2.0 A
USB-C Output
USB-C: 5.0 V⎓5.0 A/9.0 V⎓5.0 A/12.0 V⎓5.0 A/15.0 V⎓4.3 A/20.0 V⎓3.25 A/5.0~20.0 V⎓3.25 A
USB-A output
USB-A: 5 V⎓2 A
Rated Power
65 W
Charging Hub
Input
USB-C: 5-20 V⎓5.0 A max
Output
Battery: 12-17.6 V⎓5.0 A max
Rated Power
65 W
Charging Type
Charges three batteries in sequence.
Charging Temperature Range
5° to 40° C (41° to 104° F)
Punjač za auto
Unosa
Ulaz snage automobila: 12,7-16 V⎓6,5 A, nazivni napon 14 V DC
Izlazni
USB-C: 5.0 V⎓5.0 A/9.0 V⎓5.0 A/12.0 V⎓5.0 A/15.0 V⎓4.3A/20.0 V⎓3.25 A/5.0~20.0 V⎓3.25 A USB-A: 5 V⎓2 A
Ocijenjena snaga
65 vata (štampanje)
Vrijeme punjenja
cca 96 min
Raspon temperature punjenja
5° do 40° C (41° do 104° F)
